Gating System Core Product Showcase
Specializing in precision ceramic component manufacturing for the casting industry, providing high-quality ceramic gating system solutions. We use 99.7% high-purity alumina ceramic with excellent high-temperature resistance, mechanical strength, and thermal stability.
Runner Components
1650°C Resistance
Alumina 99.7%
Quick Install
Mirror Polish

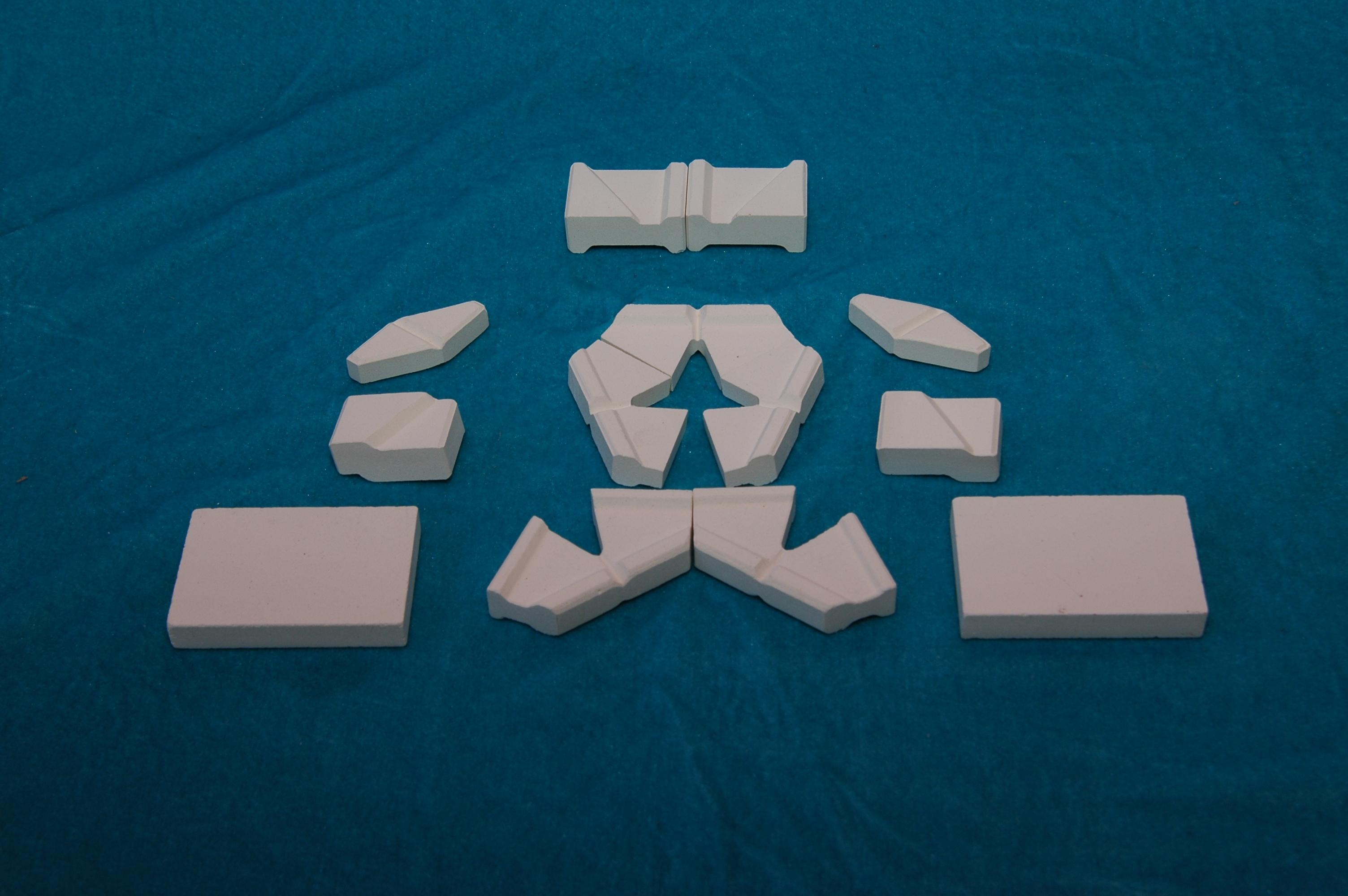

C-Shaped Open Ceramic Runner Component
High-performance gating component for precision casting
Model
Type A (Small)
Suitable Materials
Aluminum, Copper, Steel Alloys
Operating Temperature
≤1650°C
Compressive Strength
≥350MPa
Core Advantages
- C-shaped open design for quick installation and disassembly, significantly improving production efficiency
- Mirror-polished inner wall effectively reduces molten metal flow resistance
- Excellent thermal shock resistance maintains structural integrity under severe temperature changes
- 99.7% high-purity alumina ceramic ensures no chemical reaction contamination
Pouring Cups
1650°C Resistance
Alumina 99.7%
Smooth Guidance
Buffer Design

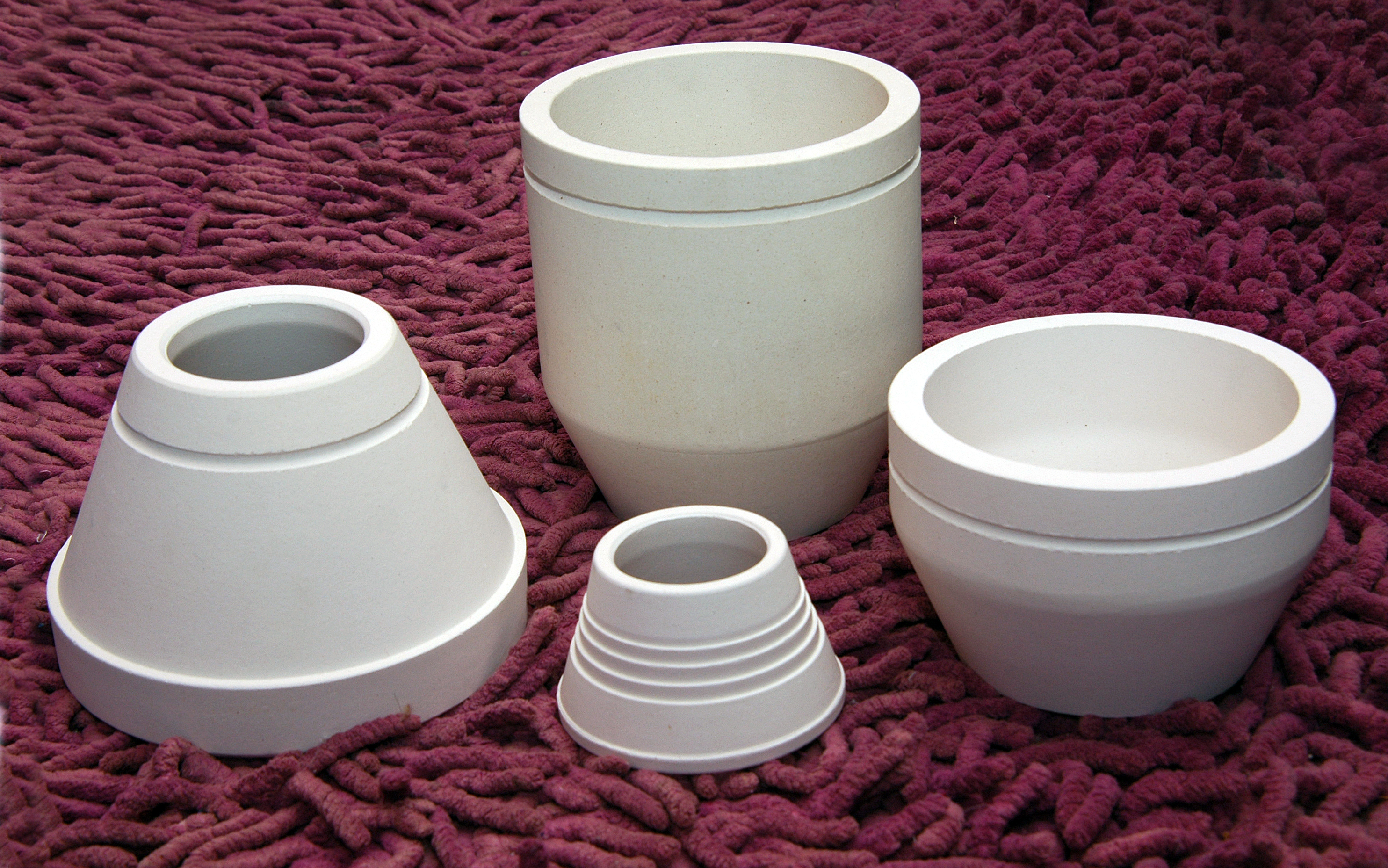

Tapered Ceramic Pouring Cup
Professional pouring solution for receiving molten metal and buffering flow velocity
Model
Type A (Small)
Main Function
Receive & buffer, prevent premature solidification
Capacity Range
100-500mL
Compressive Strength
≥320MPa
Technical Features
- Tapered design guides molten metal smoothly into mold cavity, reducing turbulence
- Excellent mechanical strength, no deformation with long-term use
- Effectively prevents premature sprue solidification, ensures complete filling
- Improves casting surface quality, reduces post-processing
Ceramic Cores
1650°C Resistance
Alumina 99.7%
Modular
High Precision
Modular Ceramic Core
Professional solution for complex casting cavity forming
Model
Type A (Small)
Main Application
Complex cavity forming, inner runner distribution
Dimensional Accuracy
±0.1mm
Compressive Strength
≥380MPa
Application Advantages
- Modular design allows flexible configuration for various complex structures
- Precise dimensional control ensures casting geometric accuracy
- Easy removal characteristics improve production efficiency
- Suitable for automotive, machinery, aerospace components
Ceramic Filters
1650°C Resistance
Alumina 99.7%
High Efficiency
Uniform Pores

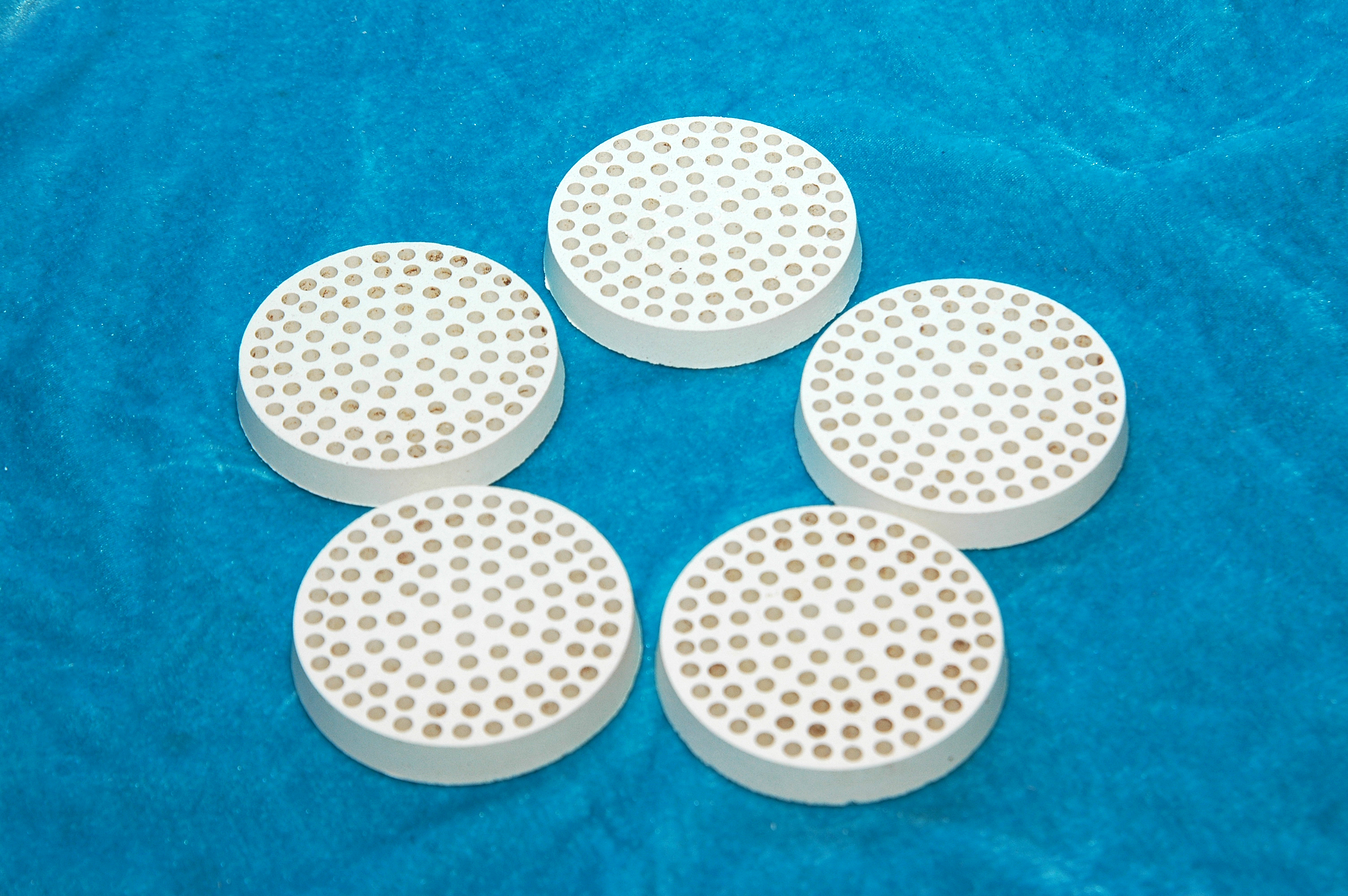

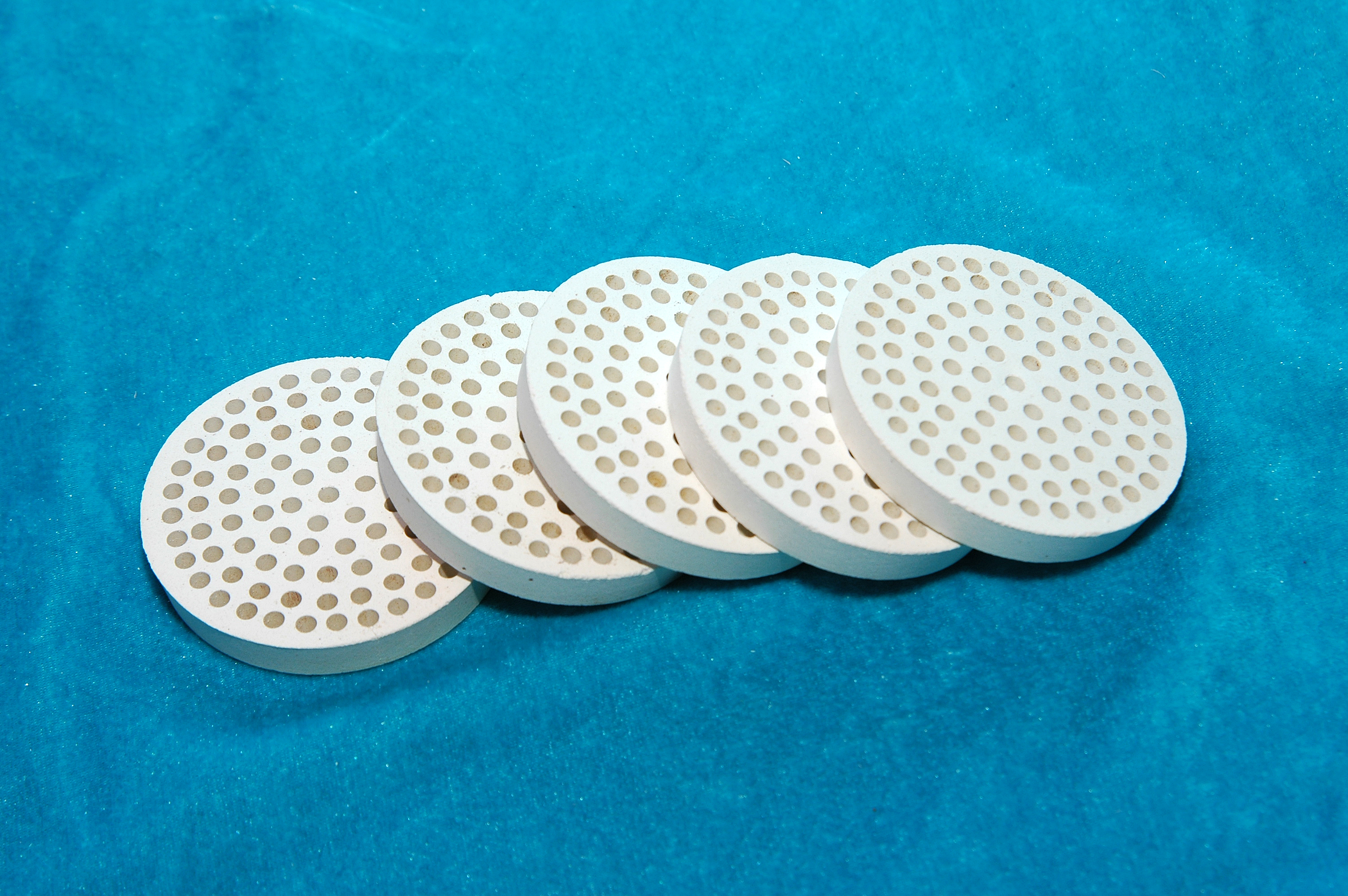

Straight-Hole Ceramic Filter
Professional filtration solution for improving casting purity
Model
Standard (Small)
Filtration Efficiency
≥95% (impurities >20μm)
Pore Size
1.0, 1.5, 2.0, 3.0mm
Compressive Strength
≥25MPa
Technical Value
- Straight-hole design provides efficient impurity removal while maintaining molten metal fluidity
- Uniform pore distribution ensures consistent filtration performance
- High-strength design, resistant to molten metal冲刷, long-term stability
- Significantly reduces casting defects like porosity and slag inclusion
